Description

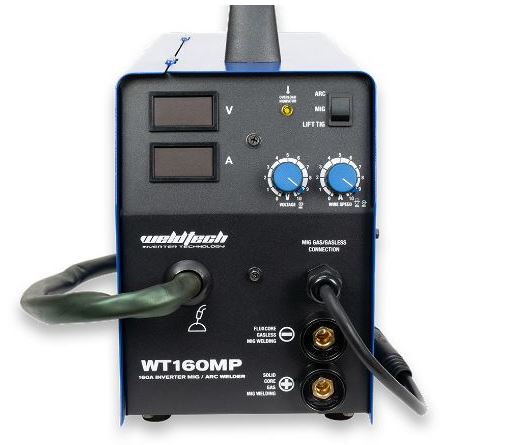

WT160MP
160A Mig/Tig/Arc Inverter Welding Machine
Cutting edge Inverter IGBT Technology helps you weld like a pro on home, workshop and on-site projects.
- ARC and MIG function for variety of jobs
- Stepless voltage and wire speed control
- 60% Mig duty cycle @ 130A
- Lightweight and robust construction – only 9kg
- Overload protection for increased reliability
- Optional Lift TIG torch available
- 10A Plug – Ideal for home & workshop power supplies
- 18 Month Trade Warranty
Includes ARC & Earth leads and 2m direct connect MB15 MIG torch
| Dimensions | 395 x 165x 290mm |
| Weight | 9kg |
| Input Power Supply | 230V AC 10A 50/60Hz |
| Input Power Supply tolerance | 170V-265V AC |
| Maximum Input Current | 21.5A |
| MIG Voltage Output | 15V-22V |
| MIG Current Output | 40A-160A |
| MIG Duty Cycle | 160A@20% 130A@60%, 100A @100% |
| MMA/ TIG Current Output | 30A-140A |
| MMA O/C Voltage | 50V |
| MMA Rod Size | 1.6-3.2mm |
| MIG Wire Size | 0.6, 0.8, 0.9 |
| Power Factor | 0.83 |
| Wire Feeding Speed | 2-11m /minute |
| Generator Capacity | 7.6kVA |
| Insulation Class | IP21 |
| Mig Wire Spool Size | Minispool- D200mm / 5kg |
| Power Efficiency | 0.85 |
| MMA /TIG Duty Cycle | 140A@25%, 120A@60%, 100A@100% |
| Welding Thickness | 6mm |
