Description

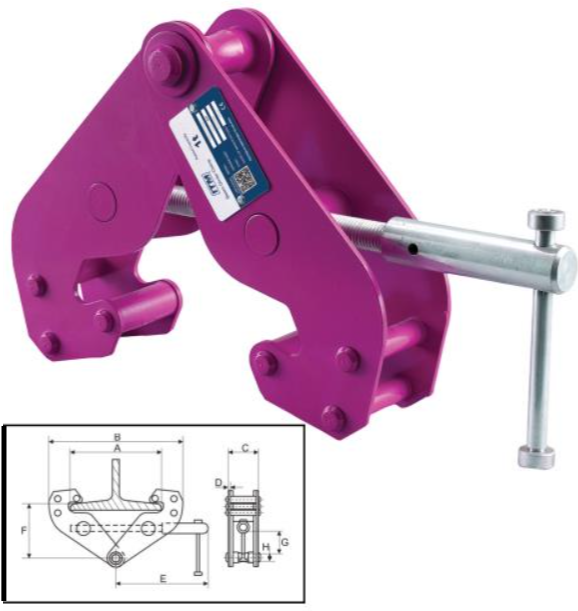

ITM Beam Clamp-1 Ton-230mm Beam Width
Weight: 3.6kg

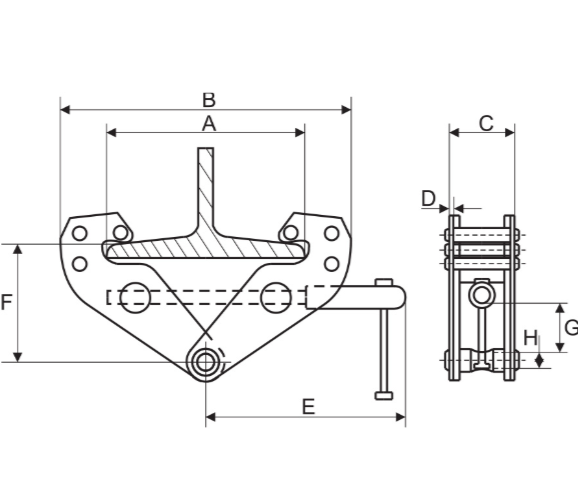

• Dimensions (mm)
A(max): 278
B (min): 182
B (max): 380
C: 64
D: 4
E: 217
F (min): 150
F (max):90
G: 26
H: 19
Beam Clamp – 1 Ton 230mm
$147.43
• Durable all steel construction
• Colour coded to WLL for safety
• Tested & certified to AS 4991
• 1000kg Rated capacity
• Violet colour coded to W.L.L. for safety
• Beam width to suit 75 – 230mm
